Product Details:
|
| Material: | Ceramic | Package Type: | Through Hole |
|---|---|---|---|
| Ated Voltage: | 250VAC | Operating Temperature: | -25 ~125℃ |
| Insulation Resistance: | IR ≥ 10000MΩ | Capacitance Tolerance: | ± 10% |
| Capacitance: | 680PF | Lead Spacing: | 7.5 Mm |
| Color: | Blue | ||
| High Light: | Stable AC Line Filter Safety Capacitors,Ceramic AC Line Filter Safety Capacitors,Voltage Proof Ceramic Disc Capacitor |
||

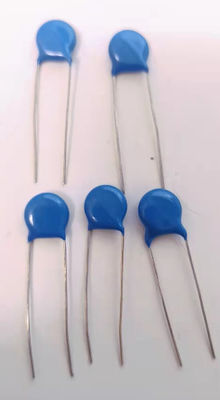

Safety Ceramic Disc Y2 Capacitor AC 300V 680PF P7.5mm 681K
| Product parameters | |
| Specification Reference Standard | IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384 |
| Approved Monogram | VDE /KTL / UL / CQC |
| Subclass ; Rated Voltage(UR) | X1 / Y1/Y2 ; 400VAC /300VAC |
| Capacitance Range | 100pF to 10000pF |
| Voltage Proof | 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min |
| Capacitance Tolerance | Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz |
| Dissipation Factor (tgδ) | Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz |
| Insulation Resistance(IR) | IR≥10000MΩ,1min,100VDC |
| Operating Temperature | -40℃ to +85℃ ; -40℃ to +125℃ |
| Temperature Characteristic | Y5P,Y5U,Y5V |
| Flame Retardant Epoxy | UL94-V0 |
| model | width | thickness | foot spacing | lead | Voltage | capacity | material | Tolerance |
| Y2-103M-Y5V | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | φ9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | φ11mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | φ8mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 100pF | Y5P | ±10% |
Application:
1. It is suitable for noise suppression circuit of power supply circuit of electronic equipment
2. Can be used in antenna coupling and bypass circuit
3. Control panel of various small household appliances
4. Power filter
5. High frequency AC load
6. Switching power supply
7. Electronic ballast
8. LED bulbs
