Product Details:
|
| Material: | Polypropylene Film Capacitor | Capacitance: | 0.22uF |
|---|---|---|---|
| Rated Voltage: | 1KV | Capacitance Tolerances: | ±5%(J) |
| Pitch: | 22.5mm | Operating Temperature Range: | -40 To +105℃ |
| Color: | Yellow | Size: | 26.5*19*10 |
| Application: | Used In Electronic Lighting (i.e. Car Headlamp And Ballast) | Packing: | In Bulk |
| Dissipation Factor: | Less Than 0.1% | ||
| High Light: | MKP Metallized Polypropylene Film Capacitor,1KV Metallized Polypropylene Film Capacitor,Multipurpose MKP Film Capacitor |
||

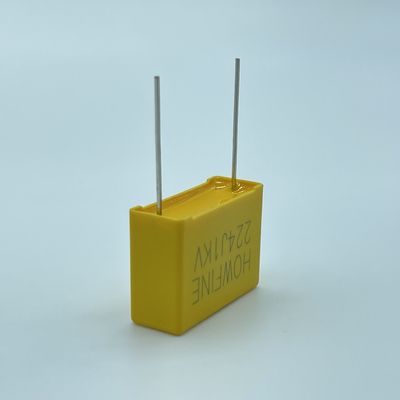

Metallized polypropylene film capacitor MMKP82 224J/1KVDC P22.5 E4
|
1.SCOPE
|
This specification applies to film capacitors of following type. Used in electronic lighting (i.e. car headlamp and ballast) |
|
2.PRODUCT NAME
|
Polypropylene film capacitor of (AC and Pulse) use. |
|
3.CONSTRUCTION (Dimensions and materials) |
Dimensions : Refer to dimensions drawing Materials
1. Element : Polypropylene film＆Double sided metallized polyester film.
2. Metal spray : Special solder. (Lead Free)
3. Lead wire : Tinned copper clad-steel wire. (Lead Free)
4. Inner coating : Epoxy resin filled. (UL-94V-0 Standard)
5. Outer coating : Plastic case. (UL-94V-0 Standard)
|
| 4.CHARACTERISTICS |
Standard atmospheric conditions.
Unless otherwise specified , the standard range of atmospheric
conditions for making measurements and tests is as follows:
Ambient temperature : 15 to 35℃
Relative humidity : 45 to 85 %
Air pressure : 86 to 106 kpa
If there may be any doubt on the results, measurements shall be made within the following limits.
Ambient temperature : 20℃ ±5 ℃
Relative humidity : 60 to 70 %
Operating temperature range : -40 to +105℃
Operating temperature range is the range of ambient temperature for which
the capacitor can be operated continuously at rated voltage.
|
