Product Details:
|
Type: | Metallized Polypropylene Film Capacitor | Model Number:: | CL23B |
---|---|---|---|
Rated Voltage: | 63V | Lead: | Tinned Copper Clad Steel Wire |
Voltage Proof: | 1.75URDC(5S) | Supplier Type:: | Original Manufacturer |
Color: | Grey | Size: | 7.2*6.5*2.5 |
Wetting Temperature: | -230 ~±5℃ | Operating Temperature:: | -40℃~+125℃ |
Capacitor Thickness(MM): | ≤3.5 | Capacitance Tolerance: ±5%(J): | ±5%(J) |
High Light: | Anticorrosive Polyester Film Box Type Capacitor,Polyester Film Box Type Capacitor,Practical Anti Interference Capacitor |

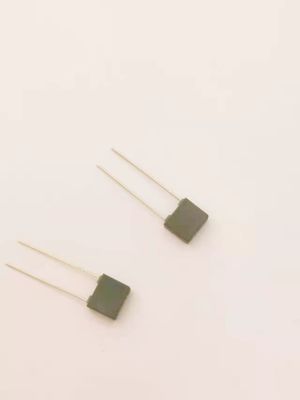

CL23B 0.15uf/63v 154J Capacitor Capacitor Is A Non-Inductive Winding Structure
Features | |||
1. Metallized polyester film,stacked construction | |||
2. Plastic case(UL94 V-0),epoxy resin sealing | |||
3. High dv/dt ability | |||
Typical Applications: | |||
1. By-passing,blocking,coupling,decoupling | |||
2. Pulse logic,timing,compact fluorescent lamps | |||
3. Inverter for LCD monitors automative DC motor suppression | |||
Specifications | |||
Reterence Standard | GB/T 7332(IEC 60384-2) | ||
Climatic Category | 55/125/56 | ||
Rated Temperature | 85℃ | ||
Operating Temperature Range | 55℃-125℃(+85 C to +125℃:decreasing factor 1.25% per C for Ur (dc) | ||
Rated Voltage | 50/63V.100V.250V,400V.500V.630V.700V | ||
Capacitance Range | 0.0010uF-2.2uF | ||
CapacitanceTolerance | +5%(J),±10%(K),±20%(M) | ||
Voltage Proof | 1.4Ua(5s) | ||
Dissipation Factor | Frequency | Cn0.1pF | Cn>0.1uF |
1kHz | ≤1.0% | ≤1.0% | |
10kHz | ≤1.5% | ≤1.5% | |
100kHz | ≤3.0% | ||
Insulation Resistance | UR>100V | R≥30000MΩ. CN≤0.33uF RCN≥ 10000s, CN>0.33uF | (20℃,100V,1min) |
UR>100V | R≥15000MΩ.CN≤0.33uF RCN≥ 5000s,0.33uF< CN≤1.0uF RCN≥ 1000s, CN>1.0uF | (20℃.10V,1min) |
