Product Details:
|
Type: | Metallized Polypropylene Film Capacitor | Model Number:: | CL23B |
---|---|---|---|
Rated Voltage: | 100V | Lead: | Tinned Copper Clad Steel Wire |
Voltage Proof: | 1.75URDC(5S) | Package Type: | Box Type By The Epoxy Potting |
Color: | Grey | Size: | 7.2*9.5*4.5 |
Wetting Temperature: | -230 ~±5℃ | Operating Temperature:: | -40℃~+125℃ |
Capacitor Thickness(MM): | ≤6.0 | Capacitance Tolerance: ±5%(J): | ±5%(J) |
High Light: | 0.33uf Polyester Box Capacitor,Durable Polyester Box Capacitor,Anti Interference PET Film Capacitor |

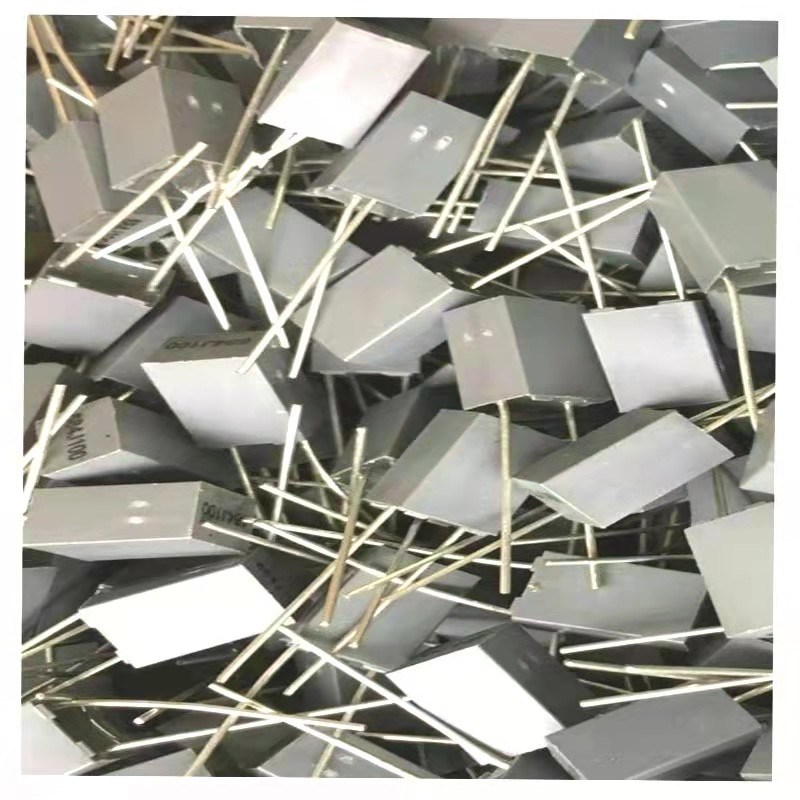

CL23B 0.33uf/100v 334J Capacitor Capacitor Is A Non-Inductive Winding Structure
Features | |||
1. Metallized polyester film,stacked construction | |||
2. Plastic case(UL94 V-0),epoxy resin sealing | |||
3. High dv/dt ability | |||
Typical Applications: | |||
1. By-passing,blocking,coupling,decoupling | |||
2. Pulse logic,timing,compact fluorescent lamps | |||
3. Inverter for LCD monitors automative DC motor suppression | |||
Specifications | |||
Reterence Standard | GB/T 7332(IEC 60384-2) | ||
Climatic Category | 55/125/56 | ||
Rated Temperature | 85℃ | ||
Operating Temperature Range | 55℃-125℃(+85 C to +125℃:decreasing factor 1.25% per C for Ur (dc) | ||
Rated Voltage | 50/63V.100V.250V,400V.500V.630V.700V | ||
Capacitance Range | 0.0010uF-2.2uF | ||
CapacitanceTolerance | +5%(J),±10%(K),±20%(M) | ||
Voltage Proof | 1.4Ua(5s) | ||
Dissipation Factor | Frequency | Cn0.1pF | Cn>0.1uF |
1kHz | ≤1.0% | ≤1.0% | |
10kHz | ≤1.5% | ≤1.5% | |
100kHz | ≤3.0% | ||
Insulation Resistance | UR>100V | R≥30000MΩ. CN≤0.33uF RCN≥ 10000s, CN>0.33uF | (20℃,100V,1min) |
UR>100V | R≥15000MΩ.CN≤0.33uF RCN≥ 5000s,0.33uF< CN≤1.0uF RCN≥ 1000s, CN>1.0uF | (20℃.10V,1min) |
Company Information
Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.
We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us
If you have any question, we always supply competitive price and good quality products.
FAQ
1. Are you a manufacturer?
A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.
2. Can I order if quantity less than MOQ?
Yes and it would be taken as sample order to production. We take more serious on sample order.
3. Can I get Free Samples?
Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.
4. Can I order with my LOGO printing, size, shape and package?
Yes, we do OEM. We also have professional design team for you if you need.
5. What is your lead-time?
OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.
6. What's your guaranty?
Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.
