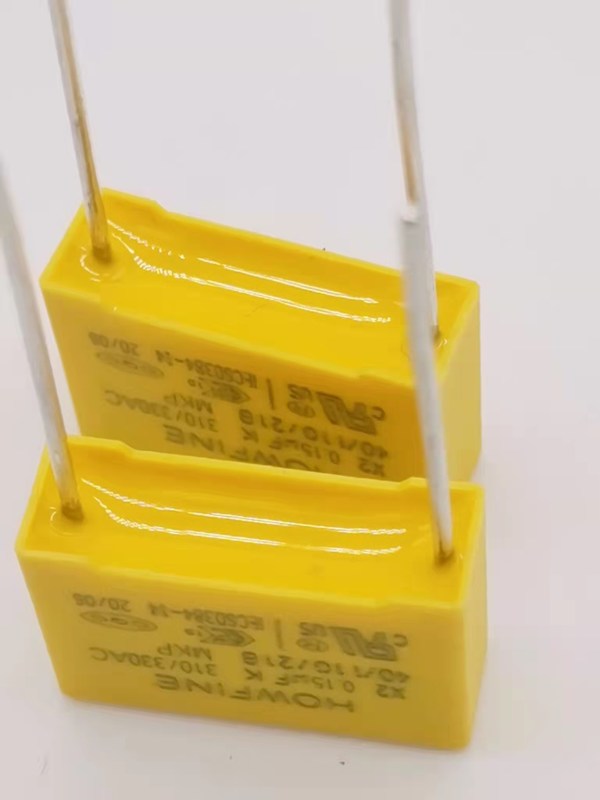

PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm

PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm
PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm

Large Image :  PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Certification: UL CQC ENEC
Model Number: X2 154K/310VAC P15mm
Payment & Shipping Terms:
Minimum Order Quantity: 10000 Pieces
Price: RMB 0.11-0.14/PCS
Packaging Details: 500pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,two small boxes in one case and 14000 pcs/box
Delivery Time: 5-7 work days
Payment Terms: T/T
Supply Ability: 1000K Pieces per Month

PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm

Description
Type: X2 Safety Capacitor Model Number:: MKP X2
Rated Voltage: 275V 310V 330V Lead: Tinned Copper Clad Steel Wire
Performance: Strong Self-healing Supplier Type:: Original Manufacturer
Color: Yellow Size: 18mm*6mm*12mm
Application: Motor, Fan, Air Conditioner Etc. Material: Polypropylene Film Capacitor
Capacitance Tolerance: 10%(K) Operating Temperature: 40/110/21B
Current - Leakage:: Very Low Pitch: 15mm
Packing: In Bulk Dissipation Factor: Less Than 0.1%
High Light:

PP X2 Safety Capacitor

,

Anti Interference X2 Safety Capacitor

,

310V X2 Film Capacitor

 MPX-X2 polypropylene film anti-interference capacitor 154k/310V D2 P15mm

 PRODUCT INFORMATION

  Introduction:

 1.  Safety Capacitors : High Stability

2.  Non-inductive.

3.  Self-healing characteristics.

4.  Plastic case, epoxy resin filled, box made of solvent resistant material.

5.  Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6.  Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7.  Safety Approved (UL. ENEC. CQC)

8.  The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the       plastic shell, fire-retardant performance reaches UL94V-0 grade.



PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm 0

1

Small size.

2

Widetemperature,frequency irritating content DF with high stability.

3

High current withstands extremely highdielectric strength.

4

Long-term work stability.

5

Fire rating:UL94V-0.6.

6

There is self-healing.

7

Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.

8

Can withstand the pressure.



Specifications

1.  Operating temperature: -40°C ~ +110°C

2.  Capacitance range: 0.01uF~3.3uF

3.  Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

4.  Rated voltage: 310VAC,330VAC

5.  Dissipation factor:0.1%MAX AT 1KHz, 25°C

6.  Voltage proof: 2100VDC 1Sec (20°C)

7. Insulation resistance:

  >30,000MΩ (C≤0.33uF)

  >10,000MΩ/ uF (C>0.33uF) AT 25°C

8.  Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

 1000VAC 60HZ for aperiod of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

 ΔIR≥50% of the specified value.



Overall structure

Meterial structure

PP Film X2 Safety Capacitor Anti Interference 154K/310V D2 P15mm 1

1

 PBT shell

2

 Metallized polypropylene film

3

  Tim-zinc alloy

4

 Tinned copper clad steel wire

5

  Epoxy potting compound



SIZE SPECIFICATION

Serial

Capacitance

Rated-Voltage

Dimensions in mm

Number

uF

V.AC

W±0.5

H±0.5

T±0.5

P±1.0

d±0.05

1

0.15

310/330

18

12

6

15

0.8



Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
