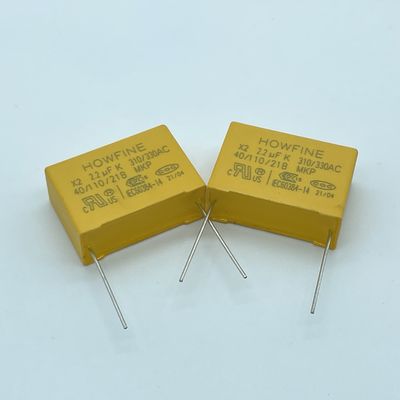

Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof

Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof
Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof

Large Image :  Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Certification: UL CQC ENEC
Model Number: X2 225K/310VAC P27.5
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: RMB 0.6-0.7/PCS
Packaging Details: 100pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 3200pcs/ box
Delivery Time: 15-21 work days
Payment Terms: T/T
Supply Ability: 1000K Pieces per Month

Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof

Description
Type: X2 Safety Capacitor Model Number:: MKP X2
Capacitance: 2.2uF Rated Voltage: 310V~330V
Capacitance Tolerance: ±10%(K) Size: 31.5mm*21.5mm*13mm
Pitch: 27.5mm Color: Yellow
Operating Temperature: -40℃~+110℃ Dissipation Factor: Less Than 0.1%
Material: Metallized Polypropylene Structure Lead: Tinned Copper Clad Steel Wire
Performance: Strong Self-healing Packing: In Bulk
Application: Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. Supplier Type:: Original Manufacturer
High Light:

225K Metalized Polypropylene Film Capacitor

,

310V Metalized Polypropylene Film Capacitor

,

Rainproof Metallized Film Capacitor

 X2 Metallized polypropylene film anti-interference capacitor 225K/310V P27.5 F2

 PRODUCT INFORMATION

  Introduction:

 1.  Safety Capacitors : High Stability

2.  Non-inductive.

3.  Self-healing characteristics.

4.  Plastic case, epoxy resin filled, box made of solvent resistant material.

5.  Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6.  Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7.  Safety Approved (UL. ENEC. CQC)

8.  The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the       plastic shell, fire-retardant performance reaches UL94V-0 grade.



Specifications

1.  Operating temperature: -40°C ~ +110°C

2.  Capacitance range: 0.01uF~3.3uF

3.  Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

4.  Rated voltage: 310VAC,330VAC

5.  Dissipation factor:0.1%MAX AT 1KHz, 25°C

6.  Voltage proof: 2100VDC 1Sec (20°C)

 7.   Insulation resistance:

     >30,000MΩ (C≤0.33uF)

    >10,000MΩ/ uF (C>0.33uF) AT 25°C

8.  Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

1000VAC 60HZ for a        period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

ΔIR≥50% of the specified value.

Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof 0

1

Small size.

2

Widetemperature,frequency irritating content DF with high stability.

3

High current withstands extremely highdielectric strength.

4

Long-term work stability.

5

Fire rating:UL94V-0.6.

6

There is self-healing.

7

Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.

8

Can withstand the pressure.





Overall structure

Meterial structure

Yellow 225K/310V Metalized Polypropylene Film Capacitor Rainproof 1

1

 PBT shell

2

 Metallized polypropylene film

3

  Tim-zinc alloy

4

 Tinned copper clad steel wire

5

  Epoxy potting compound



SIZE SPECIFICATION

Serial

Capacitance

Rated-Voltage

Dimensions in mm

Number

uF

V.AC

W±0.5

H±0.5

T±0.5

P±1.0

d±0.05

1

2.2

310/330

31.5

21.5

13

27.5

0.8



Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
