Product Details:
|
| Features: | Flame Ratardant Epoxy Resin Powder Coating | Material: | Metallizde Polypropylene Structure |
|---|---|---|---|
| Colour: | Red | Model Number: | CBB22 684J450V P15mm |
| Capacitance: | 0.68uF | Package Type: | Through Hole |
| Operating Temperature:: | -40 ℃ ~ 105℃ | Tolerance: | ±5%, |
| Dissipation Factor: | Less Than 1% | Capacitance Range: | 0.01uF-10uF |
| Application: | Lighting, General Purpose | Pitch: | 15mm |
| Performance: | Strong Self-healing | Packing: | In Bulk |
| Size: | 17mm*12.5mm*7.5mm | Coating Way: | Epoxy Coating, Good Flame Retardant |
| Highlight: | Antirust Metallized Polypropylene Film Capacitor,Anti Insulation Metallized Polypropylene Film Capacitor,0.68uF Insulation Resistance Capacitor |
||

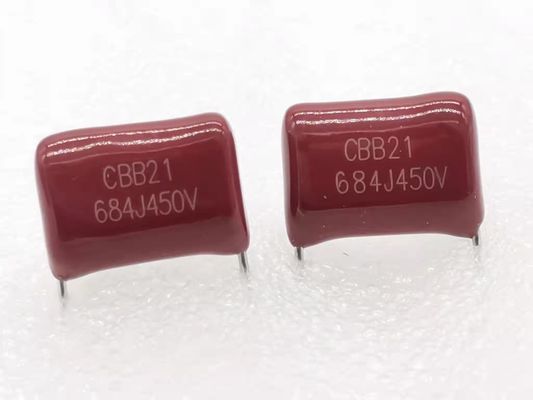

PP film capacitor high insulation resistance capacitor CBB22 684J450V P15mm
▇ Specifications
| Climatic Category | 40/105/21 |
| Operating Temperation Range |
-40 ℃ ～ 105℃ ( +85℃ to +105℃; decreasing factor 1.25% per ℃ for vR (dc)) |
| Ratde Voltage | DC 100V ,250V,400V,630V |
| Capacitance Range | 0.01µF～10 µF |
| Capacitance Tolerance | ±5% (J), ±10%(k) |
| Voltage Proot | 1.6UR (5s) |
| Dissipation Factor | ≤10x10-4 (1kHz, 20℃) |
| Insulation Resistance |
≥50000MΩ , CR≤0.33 µF ≥15000s, CR>0.33 µF (20℃ 100V 1min) |
|
① W: capacitor body width
② H: Capacitance height
③ T :Capacitance thickness
④ P:he distance between two CP lines
⑤ d: Diameter of CP line
|
 |
▇ Typical Applications
● Widely used in high frequency,DC ,AC and pulse circuits
● Providing optimun performance with small size in S-correction circuits for colour TV
● Specially designed for S-correction circuits of large screen monitor and colour TV
● Suitable for the situation where applies high frequency and high current pulse
