Product Details:
|

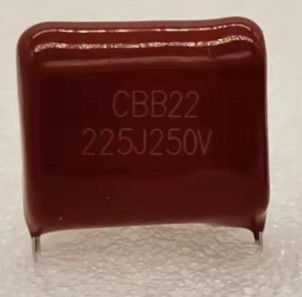

| Features: | Flame Ratardant Epoxy Resin Powder Coating | Model Number: | CBB22 225J250V P20mm |
|---|---|---|---|
| Material: | Metallizde Polypropylene Structure | Colour: | Red |
| Capacitance: | 2.2uF | Package Type: | Through Hole |
| Operating Temperature:: | -40 ℃ ~ 105℃ | Tolerance: | ±5%(J) |
| Dissipation Factor: | Less Than 1% | Capacitance Range: | 0.01uF-10uF |
| Pitch: | 20mm | Performance: | Strong Self-healing |
| Packing: | In Bulk | Size: | 22mm*19.5mm*9.5mm |
| Coating Way: | Epoxy Encapsulation (flame Retardant | Application: | Used Of Electronic Transformers. |
| High Light: | Anti Insulation Polypropylene Film Capacitor,2.2uF Polypropylene Film Capacitor,Multipurpose Metal Film Capacitor |
||
▇ Specifications
| Climatic Category | 40/105/21 |
| Operating Temperation Range |
-40 ℃ ～ 105℃ ( +85℃ to +105℃; decreasing factor 1.25% per ℃ for vR (dc)) |
| Ratde Voltage | DC 100V ,250V,400V,630V |
| Capacitance Range | 0.01µF～10 µF |
| Capacitance Tolerance | ±5% (J), ±10%(k) |
| Voltage Proot | 1.6UR (5s) |
| Dissipation Factor | ≤10x10-4 (1kHz, 20℃) |
| Insulation Resistance |
≥50000MΩ , CR≤0.33 µF ≥15000s, CR>0.33 µF (20℃ 100V 1min) |
Features:
|
① W: capacitor body width
② H: Capacitance height
③ T :Capacitance thickness
④ P:he distance between two CP lines
⑤ d: Diameter of CP line
|
 |
▇ Typical Applications
● Widely used in high frequency,DC ,AC and pulse circuits
● Providing optimun performance with small size in S-correction circuits for colour TV
● Specially designed for S-correction circuits of large screen monitor and colour TV
● Suitable for the situation where applies high frequency and high current pulse
