1.0uF SMD Multilayer Ceramic Capacitors MLCC 0603105K / 25V X7R

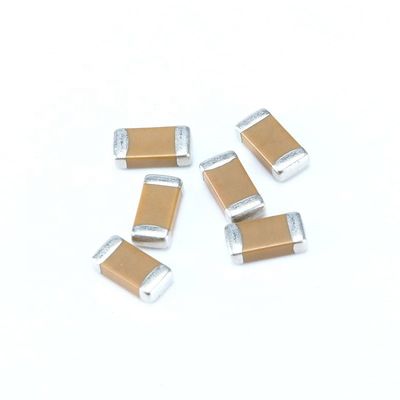

Large Image : 1.0uF SMD Multilayer Ceramic Capacitors MLCC 0603105K / 25V X7R

Product Details:

Place of Origin:	China
Brand Name:	YAGEO
Certification:	RoHS
Model Number:	CC0603KRX7R8BB105

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pcs
Packaging Details:	Paper/PE Tape reel 5000 pcs
Delivery Time:	10-15work days
Payment Terms:	T/T
Supply Ability:	5000k pieces per Month

Contact Now

1.0uF SMD Multilayer Ceramic Capacitors MLCC 0603105K / 25V X7R

Description

Type:	Ceramic Capacitors	Capacitance:	1.0uF
Rated Voltage:	25VDC	Length:	1.6 ±0.10 Mm
Package Type:	X7R	Capacitance Tolerance:	±10%
Coating Meature:	0603 (1608M)	Feature:	Consumption,high Frequency Circuit
Application:	Filter Decoupling Bypass	Wide:	0.8 ±0.10 Mm
High Light:	1.0uF Multilayer Ceramic Capacitors , SMD Multilayer Ceramic Capacitors , 25V SMD Ceramic Capacitors

SMD Multilayer Ceramic Capacitors MLCC 0603105K/25V X7R

Specification overview
Description	TC code	Series	Capacitance range	Voltage range	Size
Discrete	NP0	General purpose	0.22 pF to 33 nF	16 V to 25 V	0201, 0402, 0603, 0805, 1206, 1210
		General purpose	0.22 pF to 22 nF	50 V	0201, 0402, 0603, 0805, 1206, 1210, 1812
		Medium voltage	0.47 pF to 22 nF	100 V to 630 V	0603, 0805, 1206, 1210, 1808, 1812
		High voltage	0.47 pF to 2.7 nF	1 kV, 2 kV, 3 kV	1206, 1210, 1808, 1812
		High frequency	0.22 pF to 8.2 pF	50 V	0402, 0603, 0805
		Microwave	0.47 pF to 47 pF	50 V	0603, 0805, 1206
	X7R	General purpose & High capacitance	100 pF to 22 µF	6.3 V to 50 V	0201, 0402, 0603, 0805, 1206, 1210, 1812
		Medium voltage	100 pF to 1 µF	100 V to 630 V	0603, 0805, 1206, 1210, 1808, 1812
		High voltage	100 pF to 33 nF	1 kV to 3 kV	1206, 1210, 1808, 1812
		Low inductance	10 nF to 220 nF	10 V to 50 V	0306, 0508, 0612
	X5R	General purpose & High capacitance	10 nF to 100 µF	6.3 V to 50 V	0201, 0402, 0603, 0805, 1206, 1210, 1812
	Y5V	General purpose & High capacitance	4.7 nF to 47 µF	6.3 V to 50 V	0201, 0402, 0603, 0805, 1206, 1210
Safety certification product	NP0	High voltage SC type	2.0 pF to 470 pF	X1/Y2, X2/Y3	1808, 1812
Safety certification product	X7R	High voltage SC type	150 pF to 1.5 nF	X1/Y2, X2/Y3	1808, 1812
C-Arrays	NP0	4C arrays	10 pF to 470 pF	50 V	0508, 0612
	X7R	4C arrays	180 pF to 100 nF	16 V to 50 V	0508, 0612
	Y5V	4C arrays	10 nF to 100 nF	25 V	0612

Case dimensions
Discrete capacitors - General purpose
	Case size designation		Dimensions in mm
	Inch-based	Metric	L₁	W	L2 / L3 min	L2 / L3 max	L4 min
	0201	0603M	0.6 ±0.03	0.3 ±0.03	0.10	0.20	0.20
	0402	1005M	1.0 ±0.05	0.5 ±0.05	0.15	0.30	0.40
	0603	1608M	1.6 ±0.10	0.8 ±0.10	0.20	0.60	0.40
	0805	2012M	2.0 ±0.10 (1)	1.25 ±0.10 (1)	0.25	0.75	0.55
	0805	2012M	2.0 ±0.20 (2)	1.25 ±0.20 (2)	0.25	0.75	0.55
	1206	3216M	3.2 ±0.15 (1)	1.6 ±0.15 (1)	0.25	0.75	1.40
	1206	3216M	3.2 ±0.30 (2)	1.6 ±0.20 (2)	0.25	0.75	1.40
	1210	3225M	3.2 ±0.20 (1)	2.5 ±0.20 (1)	0.25	0.75	1.40
	1210	3225M	3.2 ±0.40 (2)	2.5 ±0.30 (2)	0.25	0.75	1.40
	1808	4520M	4.5 ±0.40	2.0 ±0.30	0.25	0.75	2.20
	1812	4532M	4.5 ±0.20 (1)	3.2 ±0.20 (1)	0.25	0.75	2.20
	1812	4532M	4.5 ±0.40 (2)	3.2 ±0.40 (2)	0.25	0.75	2.20

Thickness classes and packing quantities
Description	Size code	Thickness classification (mm)	Quantity per reel					Quantity per bulk case
			Tape width	180 mm / 7”		330 mm / 13”
			Tape width	Paper	Blister	Paper	Blister
Discrete capacitors	0201	0.3 ±0.03	8 mm	15 000	---	50 000	---	---
	0402	0.5 ±0.05		10 000	---	50 000	---	50 000
	0603	0.8 ±0.1		4 000	---	15 000	---	15 000
	0805	0.6 ±0.1		4 000	---	20 000	---	10 000
		0.85 ±0.1		4 000	---	15 000	---	8 000
		1.25 ±0.2		---	3 000	---	10 000	5 000
	1206	0.6 ±0.1		4 000	---	20 000	---	---
		0.85 ±0.1		4 000	---	15 000	---	---
		1.00 / 1.15 ±0.1		---	3 000	---	10 000	---
		1.25 ±0.2		---	3 000	---	10 000	---
		1.6 ±0.15		---	2 500	---	10 000	---
		1.6 ±0.2		---	2 000	---	10 000	---
	1210	0.6 / 0.7 ±0.1		---	4 000	---	15 000	---
		0.85 ±0.1		---	4 000	---	10 000	---
		1.0 ±0.15		---	3 000	---	10 000	---
		1.15 ±0.1		---	3 000	---	10 000	---
		1.15 ±0.15		---	3 000	---	10 000	---
		1.25 ±0.2		---	3 000	---	---	---
		1.5 ±0.1		---	2 000	---	---	---
		1.6 / 1.9 ±0.2		---	2 000	---	---	---
		2.0 ±0.2		---	2 000 / 1 000	---	---	---
		2.5 ±0.2		---	1 000 / 500	---	---	---
	1808	1.15 ±0.15	12 mm	---	3 000	---	---	---
		1.25 ±0.2		---	3 000	---	---	---
		1.35 ±0.15		---	2 000	---	---	---
		1.5 ±0.1		---	2 000	---	---	---
		1.6 ±0.2		---	2 000	---	8 000	---
		2.0 ±0.2		---	2 000	---	---	---
	1812	0.6 / 0.85 ±0.1		---	2 000	---	---	---
		1.15 ±0.1		---	1 000	---	---	---
		1.15 ±0.15		---	1 000	---	---	---
		1.25 ±0.2		---	1 000	---	---	---
		1.35 ±0.15		---	1 000	---	---	---
		1.5 ±0.1		---	1 000	---	---	---
		1.6 ±0.2		---	1 000	---	---	---
		2.0 ±0.2		---	1 000	---	---	---
Low inductance	0306	0.5 ±0.1	8 mm	4 000	---	15 000	---	---
	0508	0.85 ±0.1		4 000	---	15 000	---	---
	0612	0.85 ±0.1		4 000	---	15 000	---	---
Arrays	0508	0.6 ±0.1		4 000	---	---	---	---
Arrays	0612	0.8 ±0.1		4 000	---	---	---	---
