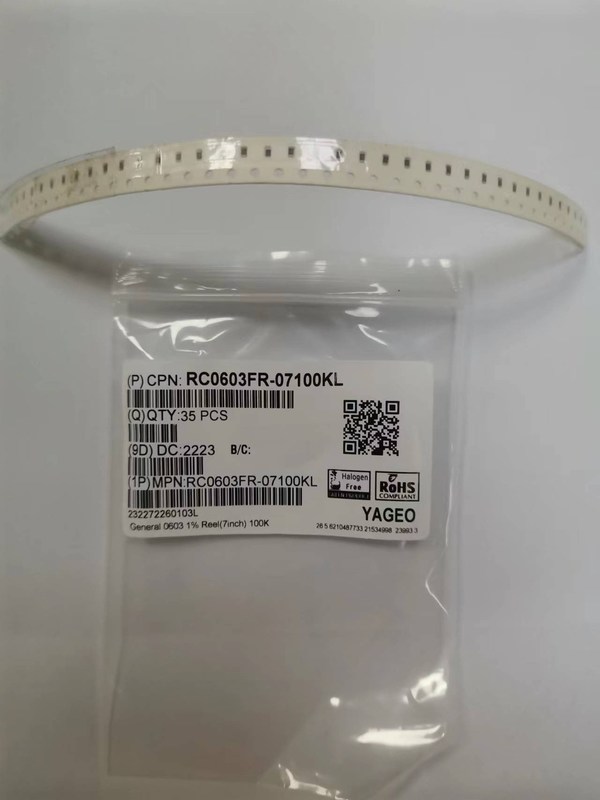

Product Details:
|
| Type: | Chip Resistor | Resistance: | 100kΩ |
|---|---|---|---|
| Length: | 1.6 ±0.10 Mm | Package Type: | Surface Mount |
| Resistance Tolerance: | ±1% | Coating Meature: | 0603(1608M) |
| Feature: | Extremely Thin And Light | Application: | Applied In The Field Of Electronics |
| Wide: | 0.8 ±0.1 Mm | Material: | Ceramic Substrate |
| High Light: | 1% Resistance Tolerance 0603 Chip Resistor,Household Appliances 0603 SMD Resistor,0.8mm 0603 Chip Resistor |
||
Features
• Extremely thin and light
• Highly reliable multilayer electrode construction
• Compatible with all soldering process
• Highly stable in auto-placement surface mounting applications
• Barrier layer end termination
• Zero ohm jumper is available
• Available in 8mm tape & reel per EIA RS481
|
Electrical characteristics |
|||||||||||
|
Type |
Power P70 |
Operating Temp. range |
MWV |
RCOV |
DWV |
Resistance range & tolerance |
T. C. R. ( ppm/°C) |
Jumper criteria (unit: A) |
|||
|
RC0100 |
1/32W |
-55°C to +125°C |
15V |
30V |
30V |
E24 ±1%, 5% Zero ohm jumper |
10Ω≤R≤1MΩ <50mΩ |
10Ω≤R≤1MΩ |
±250 |
Rated current Max. current |
0.5 1.0 |
|
RC0201 |
1/20W |
-55°C to +125°C |
25V |
50V |
50V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
1Ω≤R≤10MΩ 1Ω≤R≤1MΩ 10Ω≤R≤1MΩ <50mΩ |
10Ω<R≤10MΩ 1Ω≤R≤10Ω |
±200 -100/+350 |
Rated current Max. current |
0.5 1.0 |
|
RC0402 |
1/16W |
-55°C to +155°C |
50V |
100V |
100V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
1Ω≤R≤22MΩ 1Ω≤R≤10MΩ 10Ω≤R≤1MΩ <50mΩ |
10Ω<R≤10MΩ 1Ω≤R≤10Ω 10MΩ<R≤22MΩ |
±100 ±200 |
Rated current Max. current |
1.0 2.0 |
|
RC0603 |
1/10W |
-55°C to +155°C |
50V |
100V |
100V |
||||||
|
RC0805 |
1/8W |
-55°C to +155°C |
150V |
300V |
300V |
Rated current Max. current |
2.0 5.0 |
||||
|
1/4W |
-55°C to +155°C |
150V |
300V |
300V |
E24 ±5% E24/E96 ±1% Zero ohm jumper |
1Ω≤R≤1MΩ 1Ω≤R≤1MΩ <50mΩ |
1Ω≤R≤1MΩ |
±200 |
Rated current Max. current |
2.0 5.0 |
|
|
RC1206 |
1/4W |
-55°C to +155°C |
200V |
400V |
500V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
10Ω≤R≤22MΩ 1Ω≤R≤10MΩ 10Ω≤R≤1MΩ <50mΩ |
10Ω<R≤10MΩ 1Ω≤R≤10Ω 10MΩ<R≤22MΩ |
±100 ±200 |
Rated current Max. current |
2.0 10.0 |
|
1/2W |
-55°C to +155°C |
200V |
400V |
500V |
E24 ±5% E24/E96 ±1% Zero ohm jumper |
1Ω≤R≤1MΩ 1Ω≤R≤1MΩ <50mΩ |
1Ω≤R≤1MΩ |
±200 |
Rated current Max. current |
3.0 7.5 |
|
|
RC1210 |
1/2W |
-55°C to +155°C |
200V |
500V |
500V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
1Ω≤R≤22MΩ 1Ω≤R≤10MΩ 10Ω≤R≤1MΩ <50mΩ |
10Ω<R≤10MΩ 1Ω≤R≤10Ω 10MΩ<R≤22MΩ |
±100 ±200 |
Rated current Max. current |
2.0 10.0 |
|
RC1218 |
1W |
-55°C to +155°C |
200V |
500V |
500V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
1Ω≤R≤1MΩ 1Ω≤R≤1MΩ 10Ω≤R≤1MΩ <20mΩ |
Rated current Max. current |
6.0 10.0 |
||
|
RC2010 |
3/4W |
-55°C to +155°C |
200V |
500V |
500V |
E24 ±5% E24/E96 ±1% E24/E96 ±0.5% Zero ohm jumper |
1Ω≤R≤22MΩ 1Ω≤R≤10MΩ 10Ω≤R≤1MΩ <50mΩ |
Rated current Max. current |
2.0 10.0 |
||
|
RC2512 |
1W |
-55°C to +155°C |
200V |
500V |
500V |
Rated current Max. current |
2.0 10.0 |
||||
|
2W |
-55°C to +155°C |
200V |
400V |
500V |
E24 ±5% E24/E96 ±1% Zero ohm jumper |
1Ω≤R≤150Ω 1Ω≤R≤150Ω <50mΩ |
1Ω≤R≤150Ω |
±200 |
Rated current Max. current |
6.0 15.0 |
|
