MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage

Certification
China Dongguan HOWFINE Electronic Technology Co., Ltd. certification
China Dongguan HOWFINE Electronic Technology Co., Ltd. certification
I'm Online Chat Now

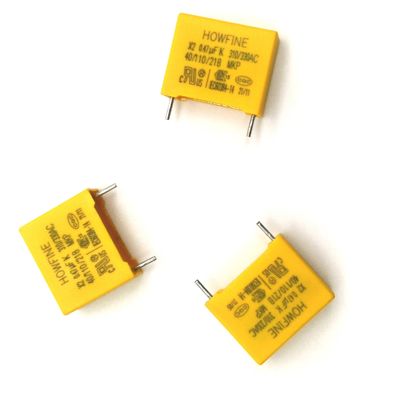

MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage

MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage
MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage

Large Image :  MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Certification: UL CQC ENEC
Model Number: X2 474K/310VAC P15
Payment & Shipping Terms:
Minimum Order Quantity: 10000 Pieces
Price: RMB 0.36/PCS
Packaging Details: 500pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 10000pcs/ box
Delivery Time: 7-15 work days
Payment Terms: T/T
Supply Ability: 1000K Pieces per Month

MPX 474K 310VAC P15mm L4mm Metallized Polypropylene Capacitor Reduction Voltage

Description
Type: X2 Safety Capacitor Model Number:: MKP X2
Capacitance: 0.47uF Rated Voltage: 275V;310V,330V
Capacitance Tolerance: ±10%(K) Pitch: 15mm
Color: Yellow Operating Temperature: -40℃~+110℃
Material: Metallized Polypropylene Structure Lead: Tinned Copper Clad Steel Wire
Performance: Strong Self-healing Packing: In Bulk
Application: Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. Supplier Type:: Original Manufacturer
Size: 18mm*13.5mm*7.5mm Dissipation Farcto: Less Than 0.1%
High Light:

CQC Metallized Polypropylene Capacitor

,

L4mm Metallized Polypropylene Capacitor

,

Metallized Polypropylene X2 Safety Capacitor



Reduction voltage capacitor MPX 474K 310VAC P15mm L4mm

 474 d4 L4.pdf

Introduction:

 1.  Safety Capacitors : High Stability

2.  Non-inductive.

3.  Self-healing characteristics.

4.  Plastic case, epoxy resin filled, box made of solvent resistant material.

5.  Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6.  Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7.  Safety Approved (UL. ENEC. CQC)

8.  The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the       plastic shell, fire-retardant performance reaches UL94V-0 grade.

Ompany Information

Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.



We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us



If you have any question, we always supply competitive price and good quality products.





FAQ



1. Are you a manufacturer?

A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.



2. Can I order if quantity less than MOQ?

Yes and it would be taken as sample order to production. We take more serious on sample order.



3. Can I get Free Samples?

Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.



4. Can I order with my LOGO printing, size, shape and package?

Yes, we do OEM. We also have professional design team for you if you need.



5. What is your lead-time?

OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.



6. What's your guaranty?

Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.
