Product Details:
|
| Material: | Metallizde Polypropylene Film | Colour: | Gray/Green |
|---|---|---|---|

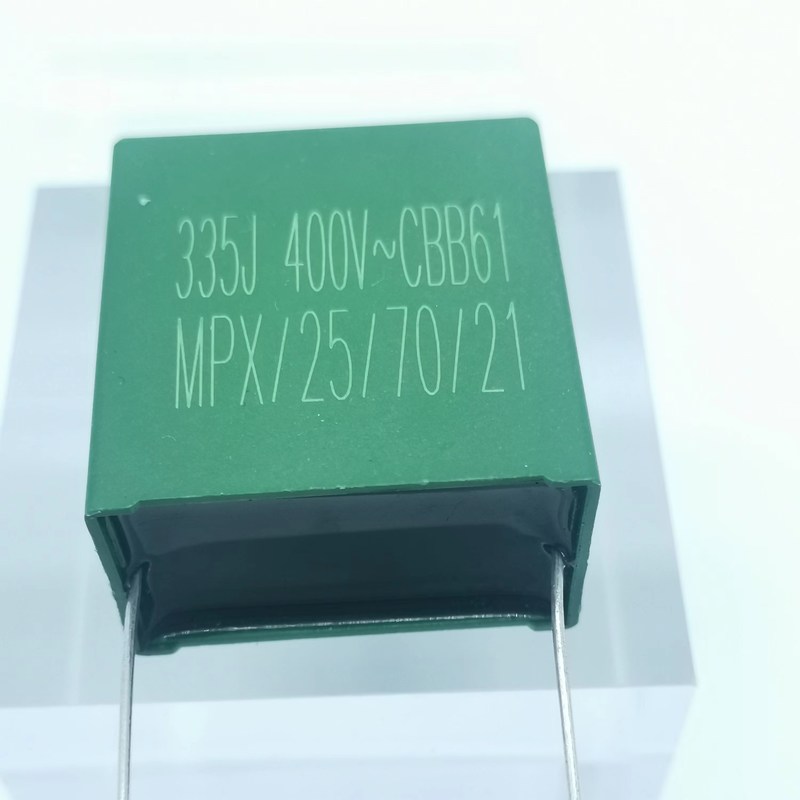

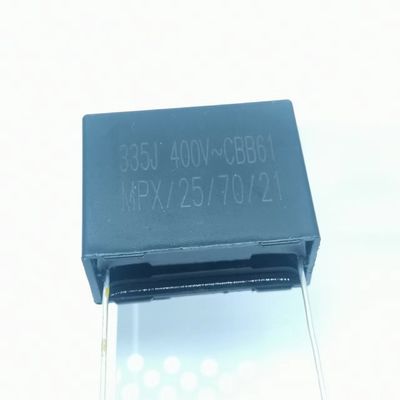

| Model Number: | CBB61 3.3UF/400V | Capacitance: | 3.3uF |
| Package Type: | Through Hole | Operating Temperature:: | -40 ℃ ~ 85℃ |
| Tolerance: | ±5%(J) | Capacitance Range: | 1uF-25uF |
| Application: | Fan, Ventilation,AC Motor, Fan Or Motor | Pitch: | 20mm |
| Performance: | Strong Self-healing | Packing: | In Bulk |
| Size: | 30mm*32mm*12mm | Coating Way: | Epoxy Filled, PBT Enclosure Enclosed |
| High Light: | Motor Metallized Polypropylene Film Capacitor,400V Metallized Polypropylene Film Capacitor,P20mm Metallized Polypropylene Film Capacitor |
||
Features:
▇ Specifications
|
Climatic Category |
40/85/21 |
|
Operating Temperation Range |
-40 ℃ ～85℃ ( +70℃ to +85℃; decreasing factor 1.25% per ℃ for vR (dc)) |
|
Ratde Voltage |
DC 250V,400V, |
|
Capacitance Range |
1µF～25C µF |
|
Capacitance Tolerance |
±5% (J), ±10%(k) |
|
Voltage Proot Between Terminals |
2.0UN (2S) |
|
Voltage Proot Between Terminals And Case |
2.0un+1000vac≤2000VAC(60s) |
|
Dissipation Factor |
≤0.002 (1kHz, 20℃) |
|
Insulation Resistance |
≥3000s, (20℃ 100V 1min) |
|
① W: capacitor body width
② H: Capacitance height
③ T :Capacitance thickness
④ P:he distance between two CP lines
⑤ d: Diameter of CP line
|
 |
Applications:
Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
