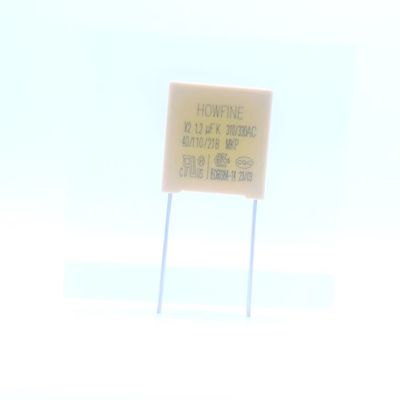

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color

Certification
China Dongguan HOWFINE Electronic Technology Co., Ltd. certification
China Dongguan HOWFINE Electronic Technology Co., Ltd. certification
I'm Online Chat Now

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color
15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color 15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color 15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color

Large Image :  15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Certification: UL CQC ENEC
Model Number: X2 125K/310VAC P15
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: RMB 2.0-2.3/PCS
Packaging Details: 200pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 3200pcs/ box
Delivery Time: 15-21 work days
Payment Terms: T/T
Supply Ability: 100K Pieces per Month

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color

Description
Type: X2 Safety Capacitor Model Number:: MKP X2
Capacitance: 1.2uF Rated Voltage: 310V~330V
Capacitance Tolerance: ±10%(K) Size: 18mm*19mm*10.8mm
Pitch: 15mm Color: Yellow
Operating Temperature: -40℃~+110℃ Dissipation Factor: Less Than 0.1%
Material: Metallized Polypropylene Structure Lead: Tinned Copper Clad Steel Wire
Performance: Strong Self-healing Packing: In Bulk
Application: Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. Supplier Type:: Original Manufacturer
High Light:

22.5mm Pitch X2 Safety Capacitor

,

330VAC X2 Safety Capacitor

,

Antenna Coupling MKP X2 Capacitor



 X2 Metallized polypropylene capacitor 125K/310V P15

 PRODUCT INFORMATION

  Introduction:

 1.  Safety Capacitors : High Stability

2.  Non-inductive.

3.  Self-healing characteristics.

4.  Plastic case, epoxy resin filled, box made of solvent resistant material.

5.  Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6.  Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7.  Safety Approved (UL. ENEC. CQC)

8.  The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the       plastic shell, fire-retardant performance reaches UL94V-0 grade.



Specifications

1.  Operating temperature: -40°C ~ +110°C

2.  Capacitance range: 0.01uF~3.3uF

3.  Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

4.  Rated voltage: 310VAC,330VAC

5.  Dissipation factor:0.1%MAX AT 1KHz, 25°C

6.  Voltage proof: 2100VDC 1Sec (20°C)

 7.   Insulation resistance:

     >30,000MΩ (C≤0.33uF)

    >10,000MΩ/ uF (C>0.33uF) AT 25°C

8.  Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

1000VAC 60HZ for a        period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

ΔIR≥50% of the specified value.

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color 0

1

Small size.

2

Widetemperature,frequency irritating content DF with high stability.

3

High current withstands extremely highdielectric strength.

4

Long-term work stability.

5

Fire rating:UL94V-0.6.

6

There is self-healing.

7

Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.

8

Can withstand the pressure.





Overall structure

Meterial structure

15mm Pitch X2 Safety Capacitor 125K 310V Yellow Color 1

1

 PBT shell

2

 Metallized polypropylene film

3

  Tim-zinc alloy

4

 Tinned copper clad steel wire

5

  Epoxy potting compound



SIZE SPECIFICATION

Serial

Capacitance

Rated-Voltage

Dimensions in mm

Number

uF

V.AC

W±0.5

H±0.5

T±0.5

P±1.0

d±0.05

1

1.2

310/330

18

19

11



150.8



Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...





FAQ



1. Are you a manufacturer?

A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.



2. Can I order if quantity less than MOQ?

Yes and it would be taken as sample order to production. We take more serious on sample order.



3. Can I get Free Samples?

Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.



4. What is your lead-time?

OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.



5. What's your guaranty?

Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.





How Do You Read Codes in Capacitor
There are two common ways to find out the capacitance value of a capacitor, one is to measure it with a digital multimeter and the other is to read the colour code printed on the capacitor. These colour bands indicate the capacitance value according to the colour code, including the voltage rating and tolerance
