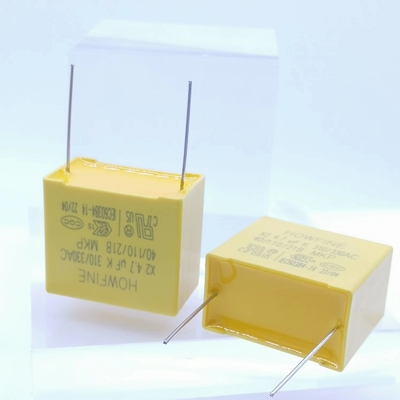

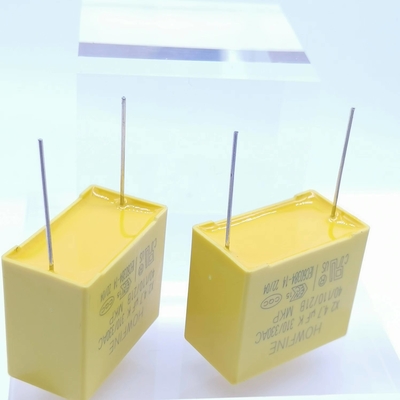

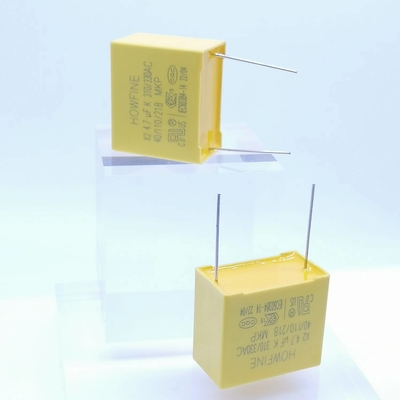

Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V

Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V
Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V

Large Image :  Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Certification: UL CQC ENEC
Model Number: X2 475K/310VAC P37.5
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: RMB 2.0-2.3/PCS
Packaging Details: 100pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 1600pcs/ box
Delivery Time: 15-21 work days
Payment Terms: T/T
Supply Ability: 100K Pieces per Month

Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V

Description
Type: X2 Safety Capacitor Model Number:: MKP X2
Capacitance: 3.3uF Rated Voltage: 310V~330V
Capacitance Tolerance: ±10%(K) Size: 31.5mm*24mm*14mm
Pitch: 27.5mm Color: Yellow
Operating Temperature: -40℃~+110℃ Dissipation Factor: Less Than 0.1%
Material: Metallized Polypropylene Structure Lead: Tinned Copper Clad Steel Wire
Performance: Strong Self-healing Packing: In Bulk
Application: Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. Supplier Type:: Original Manufacturer
High Light:

X2 Safety Capacitor CQC

,

330V Metallized Polypropylene Capacitor

,

MKP X2 Metallized Polypropylene Capacitor



 X2 Metallized polypropylene capacitor 475/310V J18

 PRODUCT INFORMATION

  Introduction:

 1.  Safety Capacitors : High Stability

2.  Non-inductive.

3.  Self-healing characteristics.

4.  Plastic case, epoxy resin filled, box made of solvent resistant material.

5.  Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6.  Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7.  Safety Approved (UL. ENEC. CQC)

8.  The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the       plastic shell, fire-retardant performance reaches UL94V-0 grade.



Specifications

1.  Operating temperature: -40°C ~ +110°C

2.  Capacitance range: 0.01uF~3.3uF

3.  Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

4.  Rated voltage: 310VAC,330VAC

5.  Dissipation factor:0.1%MAX AT 1KHz, 25°C

6.  Voltage proof: 2100VDC 1Sec (20°C)

 7.   Insulation resistance:

     >30,000MΩ (C≤0.33uF)

    >10,000MΩ/ uF (C>0.33uF) AT 25°C

8.  Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

1000VAC 60HZ for a        period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

ΔIR≥50% of the specified value.

Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V 0

1

Small size.

2

Widetemperature,frequency irritating content DF with high stability.

3

High current withstands extremely highdielectric strength.

4

Long-term work stability.

5

Fire rating:UL94V-0.6.

6

There is self-healing.

7

Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.

8

Can withstand the pressure.





Overall structure

Meterial structure

Yellow Color Metallized Polypropylene X2 Safety Capacitor 475K 310V 1

1

 PBT shell

2

 Metallized polypropylene film

3

  Tim-zinc alloy

4

 Tinned copper clad steel wire

5

  Epoxy potting compound



SIZE SPECIFICATION

Serial

Capacitance

Rated-Voltage

Dimensions in mm

Number

uF

V.AC

W±0.5

H±0.5

T±0.5

P±1.0

d±0.05

1

3.3

310/330

41.5

30

17

37.5

0.8



Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...



Company Information



Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.



We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us



If you have any question, we always supply competitive price and good quality products.





In addition, sometimes capacitors are marked with a capital K to indicate a value of one thousand picofarads, so, for example, a capacitor marked 100K would be 100 x 1000pF or 100nF.
