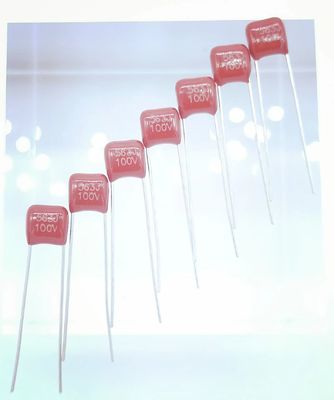

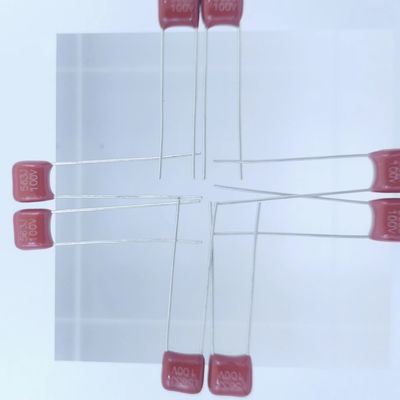

Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm

Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm
Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm

Large Image :  Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm

Product Details:
Place of Origin: China
Brand Name: HOWFINE
Model Number: CL21X 563J/100V P5mm
Payment & Shipping Terms:
Minimum Order Quantity: 10000 Pieces
Price: RMB 0.15-0.16/PCS
Packaging Details: 1000pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 30000 pcs/ box
Delivery Time: 5-7work days
Payment Terms: T/T
Supply Ability: 3000000 Pieces per Month

Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm

Description
Features: Flame Retardant Epoxy Resin Coating Materia: Metallized Polyester Film
Color: Red Capacitance Range: ±5%(J)
Voltage - Breakdown: 1.6UR Package Type: High Temperature Wax Sealed
Packing: In Bulk Applications: Various DC And Low Pulse Occasions
Laser Printing: Laser Printing Performance: Strong Self-healing
Rated Voltage: 100V , 250V,400V,630V Supplier Type: Original Manufacturer
High Light:

P5mm Metallized Polyester Film Capacitor

,

100V Metallized Polyester Film Capacitor

,

Metallized Polyester Film Mini Capacitor

 Mini Metallized Polyester Film Capacitor CL21X 563J100V





 Product Fetures:



This product is ultra-small, self-healing, high temperature, the small capacity available in series production

of metallized film, high pressure, high temperature wax seal, flame retardant epoxy powder coating, moisture

stable performance, low noise,

appearance consistency.





METALLIZED POLYESTER FILM CAPACITOR

TYPE: MEF/CL21
FEATURES APPLICATIONS



  • Non – inductive construction
  • Self – healing
  • High reliable and superior performance in
  • high frequency application
  • Filter and noise suppression circuit
  • Pulse logic and timing circuit
  • DC – blocking, by-passing and signal coupling

in general communication equipment


 SPECIFICATIONS
          Dielectric

Polyester film

 Electrodes

Vacuum evaporated metal

 Coating

Epoxy resin coating

 Leads

Radial leads of tinned wire

 Climatic Catalogue

40 / 85 / 21

 Capacitance versus Rated Voltage (UR)

100VDC 0.01 uF ~ 10uF; 250VDC 0.01uF ~ 6.8uF

400VDC 0.01uF ~ 1.8uF; 630VDC 0.01uF ~ 1.0uF

 Capacitance Tolerance

J = ± 5% K = ±10% M = ± 20%

 Dissipation Factor (Tangent of Loss)

C<=1.0uF DF<=0.80%

C>1.0uF DF<=1.0% (at20℃, 1KHZ)

 Voltage Proof

1.6×UR (1minute at20℃)

 Insulation Resistance

C<=0.33uF IR>=15,000MΩ

C>0.33uF IR×C>=5,000MΩ / uF

(1minute at20℃ and RH<=65%)



 Usage:

 Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.







Company Information



Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.



We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us



If you have any question, we always supply competitive price and good quality products.





FAQ



1. Are you a manufacturer?

A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.



2. Can I order if quantity less than MOQ?

Yes and it would be taken as sample order to production. We take more serious on sample order.



3. Can I get Free Samples?

Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.



4. Can I order with my LOGO printing, size, shape and package?

Yes, we do OEM. We also have professional design team for you if you need.



5. What is your lead-time?

OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.



6. What's your guaranty?

Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.





Outline Drawing:

Mini Metallized Polyester Film Capacitor CL21X 563J / 100V P5mm 0
